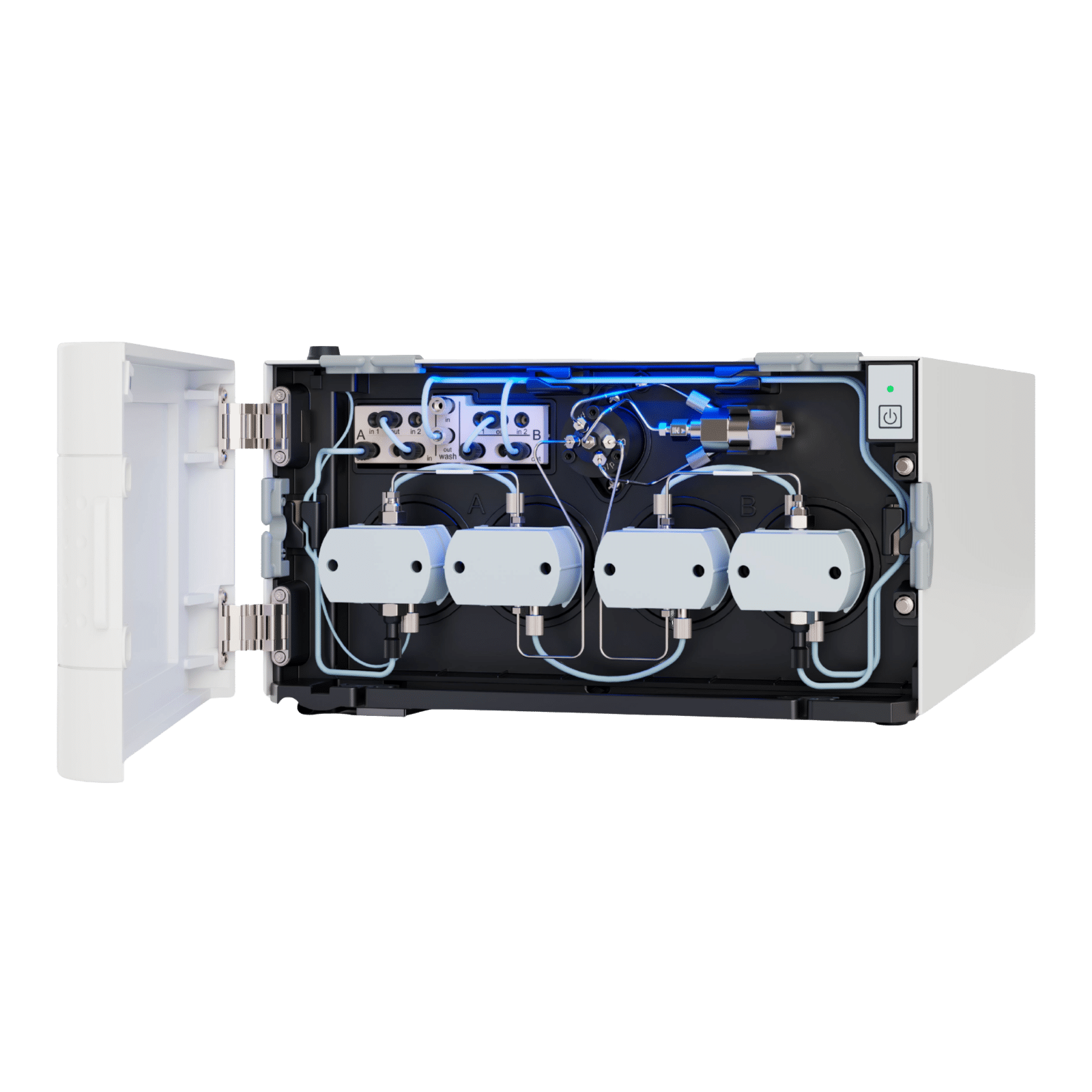

SPH1299™

Easy to use pump for reliable performance
The SPH1299™ is an advanced workhorse for robust, state-of-the-art (U)HPLC performance and beyond. This high pressure gradient pump delivers an ultra-precise gradient flow up to 18,850 psi (1300 bar). Featuring truly automatic compressibility compensation, real self-priming and clearing plus simple maintenance, this pump will turn users into friends.
SPH1299
Innovative pumping technology created in Holland. Robust, precise and easy to maintain.

Robust, precise and easy to use

Experts in liquid sample preparation

Pressure up to 1.300 bar

Focused on OEM partnerships

True automatic self-priming

Easy product customization

Automatic solvent compressibility compensation

From development to manufacturing

Easy and economic user maintenance

Reliable performance

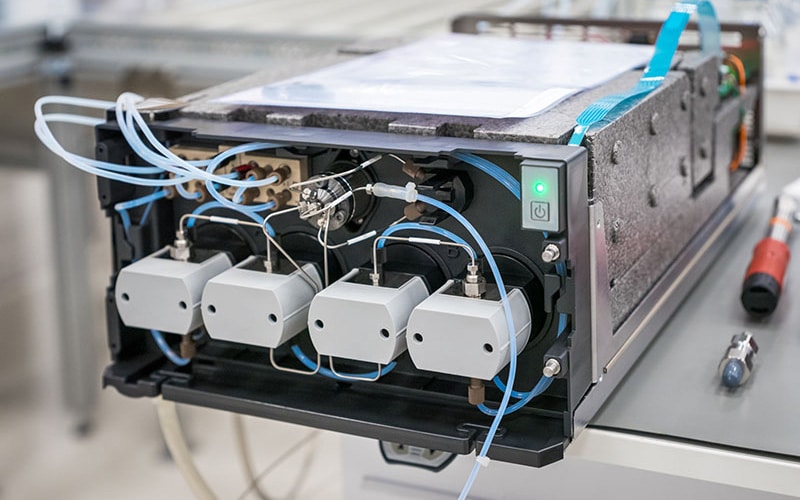

SPH1299™ is based on the reliable, proven concept of linear drive technology for two pairs of serially coupled pump heads. Each of the four pump heads is individually driven and controlled. This generates maximum freedom for flow control and pulse reduction, resulting in a stable and accurate flow, independent of solvent compressibility, pressure and flow rate.

Key features

Sample preparation instruments
Sample preparation instruments
Sample preparation instruments

True automatic self-priming

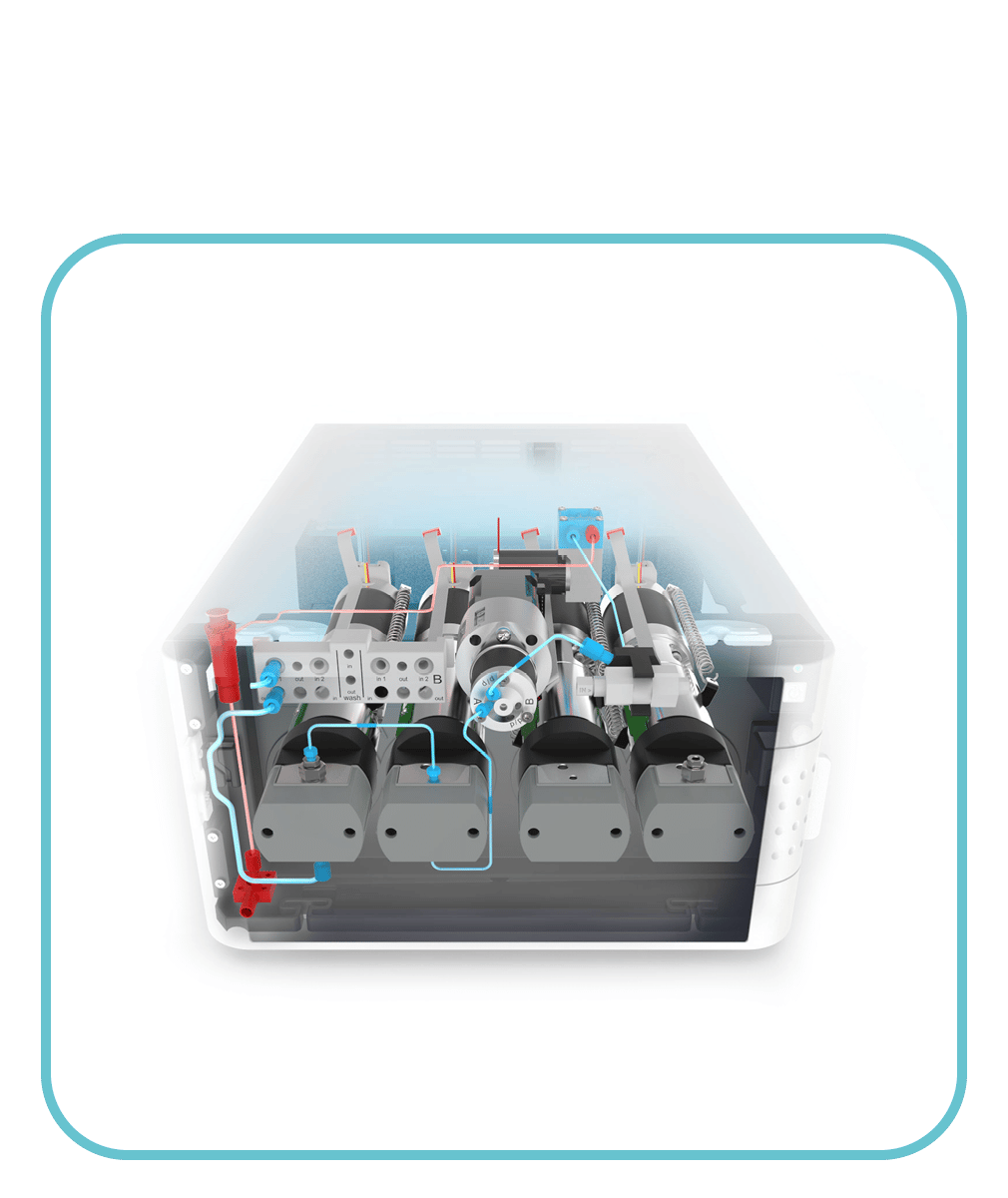

A novel automatic priming concept fully automates the priming procedure. A built-in prime pump aspirates solvent through the pump heads when starting with empty solvent inlet lines.

Reliable and robust performance

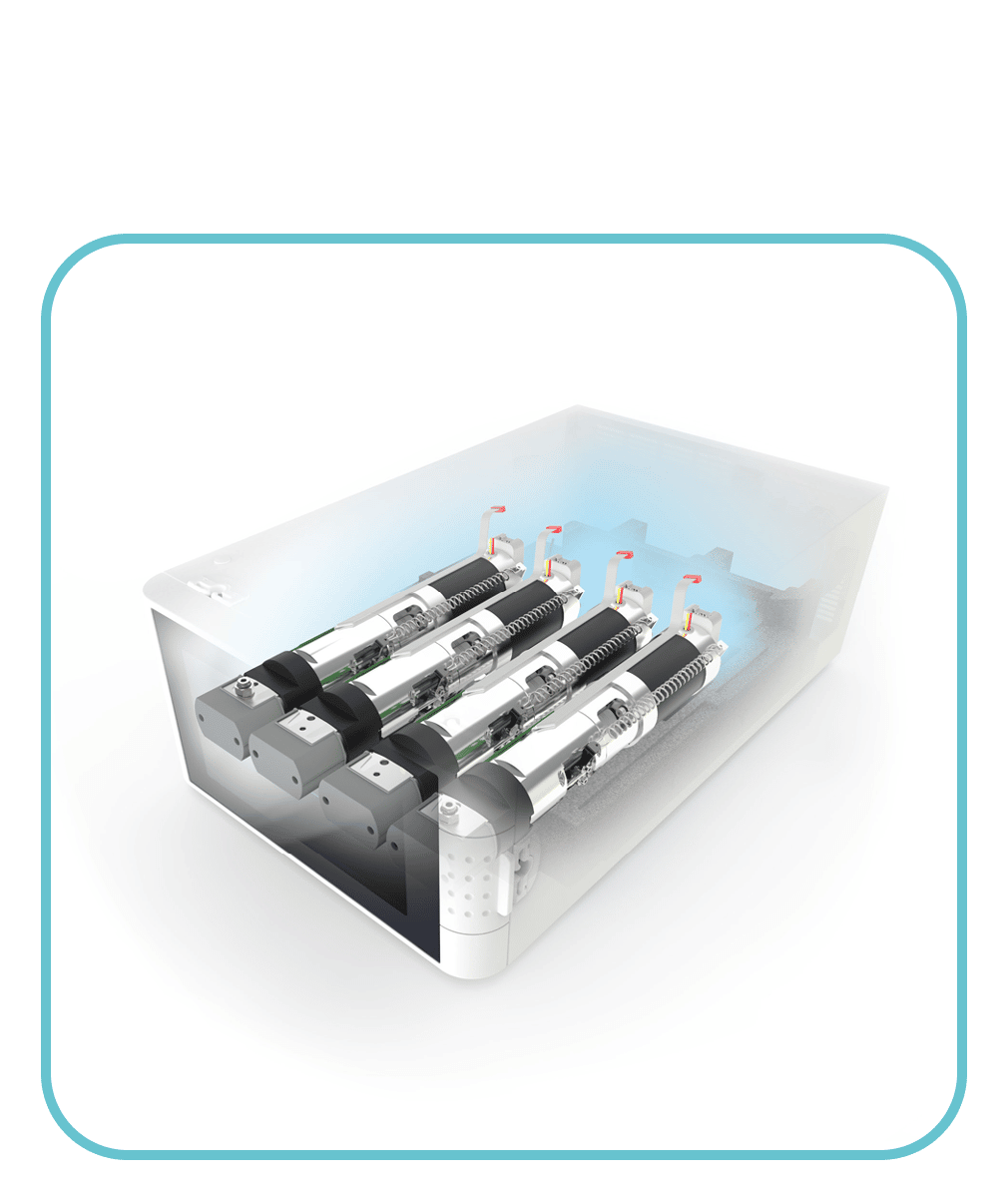

Using linear driven technology for two pairs of serially coupled pump heads, resulting in a stable and accurate flow. You will experience ultra-precise solvent gradients.

Easy and economic user maintenance

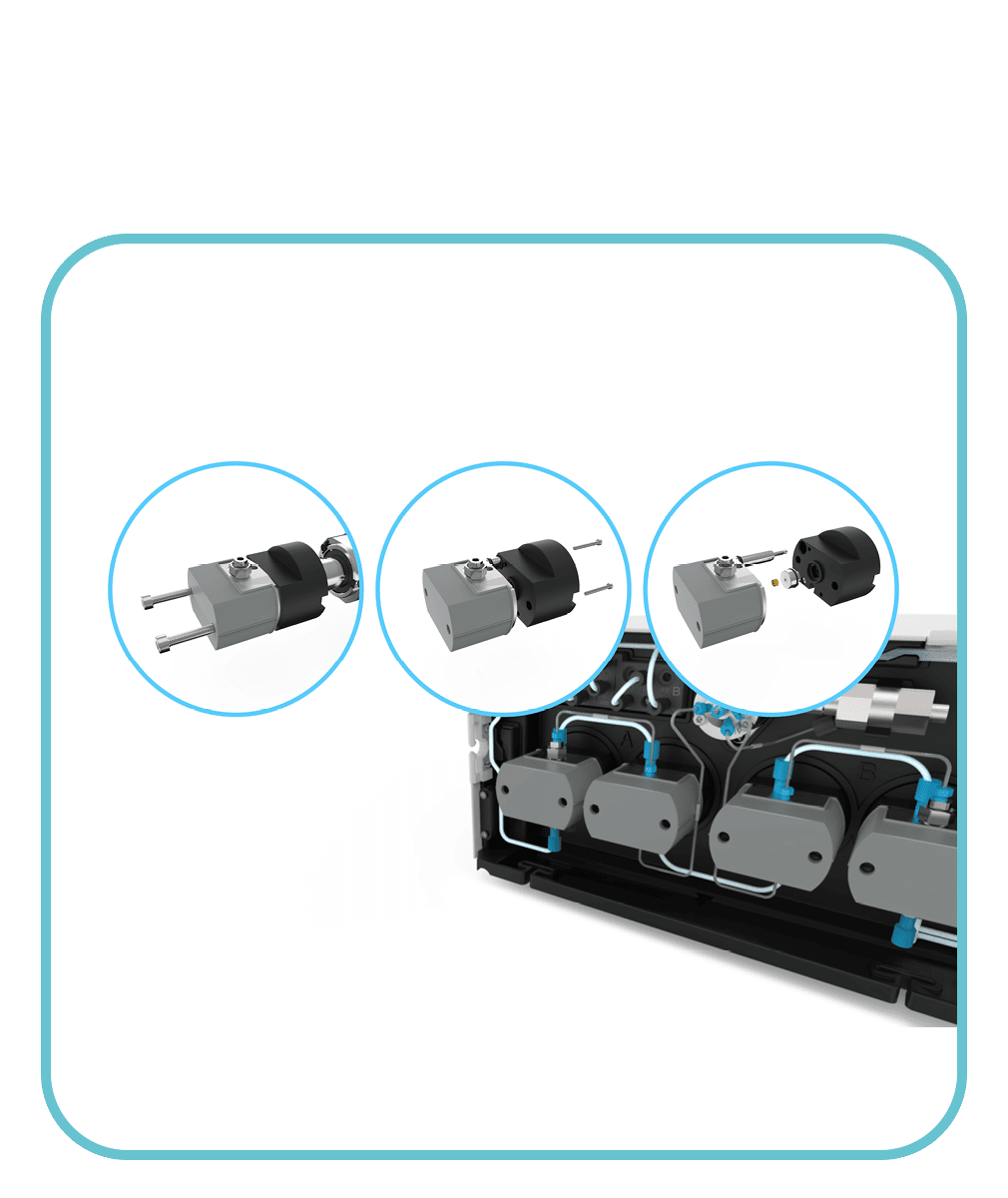

The pump head has been designed for easy disassembly and seal exchange. No need to remove covers or expensive exchanges of entire pump assemblies. Simply disconnect, remove and replace.

Easy maintenance

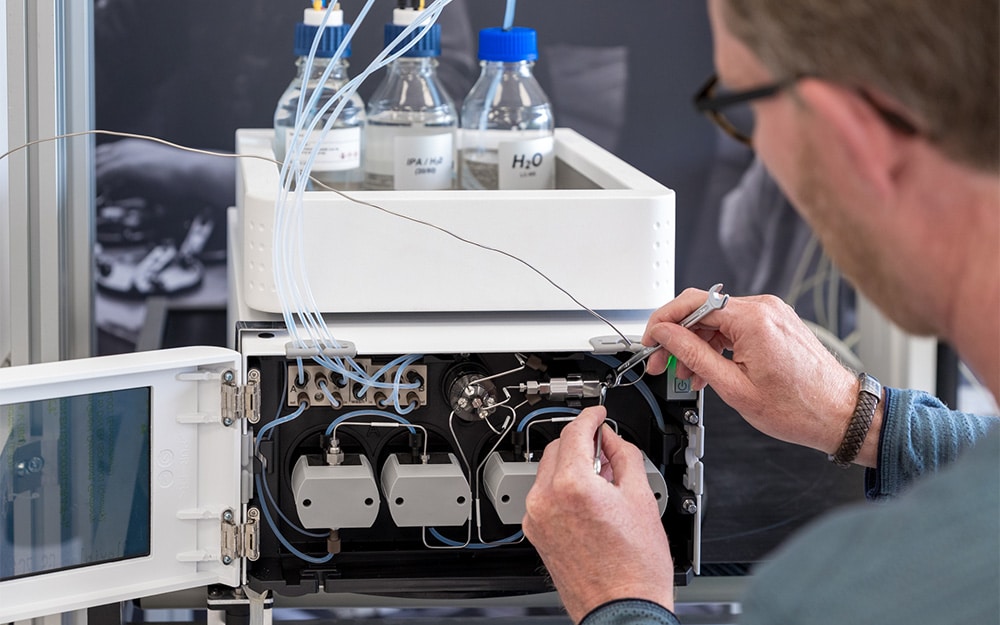

Purging, disconnecting and even piston replacement are no longer a threshold for you. Using an electrically actuated purge valve, SPH1299™ can truly prime and purge all by itself. No need to help your pump with a syringe for awkward manual solvent aspiration. Up-time of the pump is increased by the active piston backwash. But eventually a seal will need replacement. The pump head has been designed to facilitate easy disassembly and seal exchange in just minutes. Simply disconnect, remove and replace.

Find out all about our products, commitment, lead times and support.

Discover our passion for the continuous improvement of your liquid sample workflows.

Better sample care

Download the product brochure

An advanced workhorse for robust, state-of-the-art chromatographic performance and beyond. Delivering ultra-precise gradient flow up to 1300 bar.
